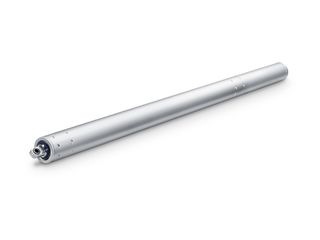

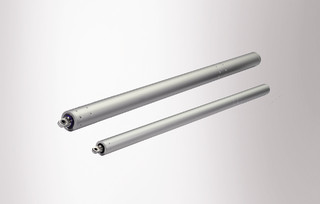

E 3000 * Spindle drive for particularly heavy roof windows
- Very high tensile and compressive force
- Robust and corrosion-resistant design with built-in end position damping
- Aluminium housing for highest design demands
- Extensive brackets allow versatile installation on main or secondary closing edges
- Synchronisation of max. four drives without external control unit
- Tested in accordance with EN 12101-2 (natural smoke and heat extraction devices)
Application Areas
- Very heavy windows in the roof area
- Natural ventilation, smoke and heat extraction system, natural smoke and heat extraction device (SHEV)
- Use in the exhaust air system
- Installation on wooden, PVC or metal windows
- Frame installation
Technical data
| E 3000 | |
| Dimensions | 50 x 50 mm |
| Opening speed RWA | 7.8 mm/s |
| Opening speed ventilation | 7.8 mm/s |
| Force of pressure (max.) | 3000 N |
| Holding force (max.) | 25000 N |
| Tensile force | 3000 N |
| Voltage at operation | 24 V ± 25 % |
| Operating voltage | 24 V DC |
| Current consumption | 5 A |
| Power consumption | 91 W |
| Residual ripple | 20 % |
| Duty rating | 30 % |
| Connector cable length | 3 m |
| Special length of connector cable | 5 m, 10 m |
| Min. core cross section | 1 mm² |
| Number of cores | 3 cores |
| Service temperature | -5 - 75 °C |
| IP rating | IP54 |
| protection rating | III |
| Syncro function | Yes |
| Type of additional locking mechanism | Locking drive |
| Type of stroke shortening | Factory setting |
| End position cut-off extended | electronic |
| End position cut-off retracted | electronic |
| Overload cut-off | Yes |
| Complete opening within 60 s | yes, up to 300 mm stroke |
| SHEV tested | Yes |
| SHEV additional information | yes, up to 300 mm stroke |
| Number synchronisation drive units | 4 |
| OUTWARD-opening roof window | Yes |
